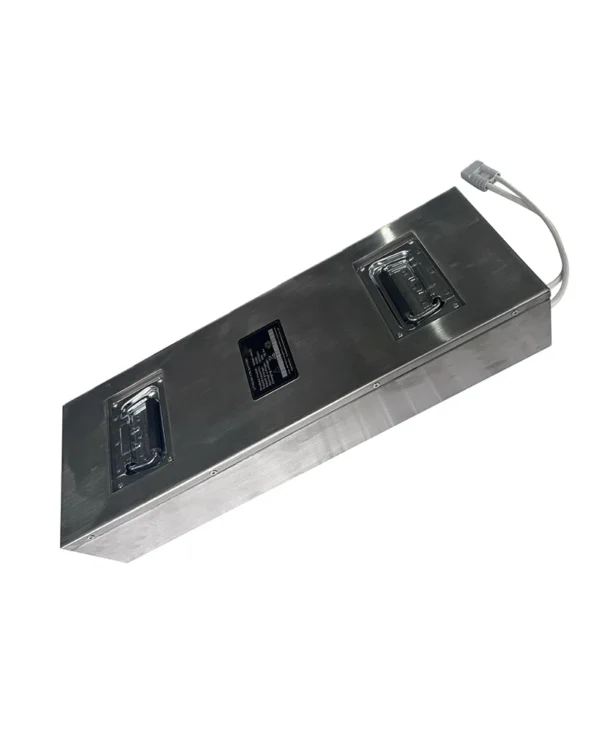

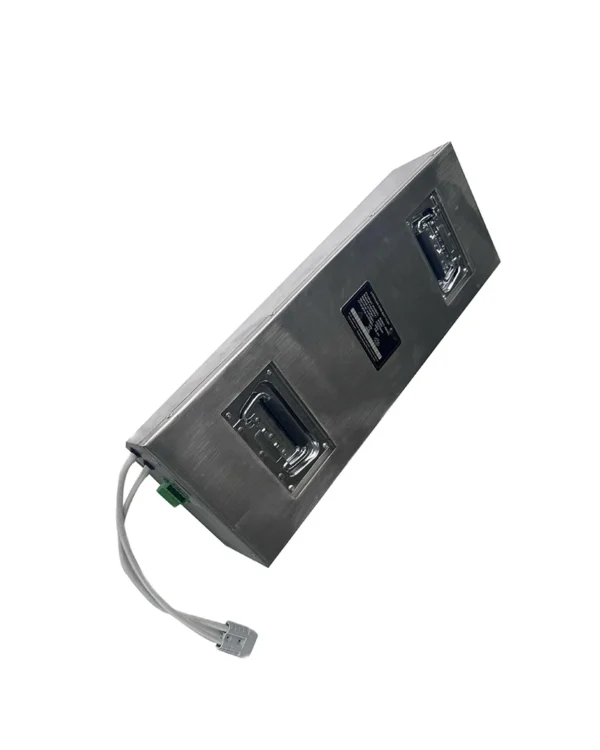

48V 40Ah LiFePO₄ Battery – Extra-Long Slim Design for Space-Optimized AGV/RGV Applications
48V 40Ah LiFePO₄ battery with extended 600mm length and slim 120mm height, engineered for AGV/RGV with narrow elongated battery compartments. 60A max discharge, 2,048Wh capacity, RS485/CAN communication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 48V 40Ah Extended |
| Chemistry | LiFePO₄ (LFP) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 40Ah |
| Energy | 2,048Wh |
| Max Continuous Discharge Current | 60A |
| Standard Charge Current | 15A |
| Standard Discharge Current | 20A |
| Charging Voltage | 57.6V |
| Discharge Cut-off Voltage | 42V |
| Charging Protection Voltage | 59.2V |
| AC Impedance | ≤50 mΩ |
| Communication Protocols | RS485 / CAN / Analog |
| Operating Temperature (Charge) | 0℃ ~ 45℃ |
| Operating Temperature (Discharge) | -15℃ ~ 55℃ |
| Storage Temperature / Humidity | -10℃ ~ 50℃ / 60±25% RH |
| Dimensions (L × W × H) | 600 × 200 × 120 mm |
| Weight | ~21 kg |
| Cycle Life | >2000 cycles @80% DOD |
| Casing Material | High-strength alloy steel |
| Certifications | CE, UN38.3, MSDS, ISO 9001 |
48V 40Ah LiFePO₄ Battery – Extra-Long Slim Power for Space-Optimized AGV/RGV Systems
The Runing Power 48V 40Ah LiFePO₄ battery is specifically designed for automated guided vehicles (AGV) and rail guided vehicles (RGV) with elongated, slim battery compartments — particularly low-profile AGVs, under-chassis mounted systems, and custom-designed material handling equipment where standard form factors simply don’t fit.
Why Choose the Extended 600mm Version?
Many AGV platforms feature narrow, elongated battery bays to maintain low overall vehicle height. Standard batteries are often too short and too tall, wasting valuable space or failing to fit altogether. The 48V 40Ah Extended solves this with a 600mm length and ultra-slim 120mm height, delivering 2,048Wh of energy in a form factor that perfectly matches these specialized chassis designs.
Ideal Applications:
-
Low-profile AGVs — slim 120mm height fits under tight vehicle clearances
-
Under-chassis mounted systems — elongated 600mm length matches rail-mounted battery trays
-
Custom material handling equipment — specialized form factors for bespoke automation
-
RGV systems with linear guide rail integration
-
Space-optimized warehouse automation
Key Features & Benefits
| Feature | Benefit | Key Data |
|---|---|---|
| Extended 600mm Length | Perfect match for elongated battery compartments — maximizes usable space in narrow chassis | 600mm length |
| Ultra-Slim 120mm Height | Fits low-profile AGV designs — maintains low vehicle center of gravity | 120mm height |
| High Energy Density | Extended runtime for full-shift operations | 2,048Wh capacity |
| High-Rate Discharge | Handles heavy-load starts and demanding duty cycles | 60A max continuous discharge |
| Multi-Protocol Communication | Seamless integration with all major AGV/RGV controllers | RS485 / CAN / Analog |
| Wide Operating Temperature | Reliable performance across varied warehouse conditions | Charge: 0℃ ~ 45℃ Discharge: -15℃ ~ 55℃ |
| Lightweight Design | Reduces overall vehicle weight — improves energy efficiency | ~21 kg |
| Intelligent BMS Protection | Comprehensive safety — prevents over-current, short-circuit, over-temperature, and under-voltage | 10+ protection layers with millisecond response |
| Long Cycle Life | 4–6× longer than lead-acid — dramatically reduces total cost of ownership | >2000 cycles @80% DOD |
| Global Certifications | Smooth customs clearance and market access worldwide | CE · UN38.3 · MSDS · ISO 9001 |
Applications
| Application | Why Choose 48V 40Ah Extended |
|---|---|
| Low-Profile AGVs | 120mm height fits under tight vehicle clearances without compromising ground clearance |
| Under-Chassis Mounted Systems | 600mm elongated form factor matches rail-mounted battery trays |
| Custom Automation Equipment | Bespoke dimensions for specialized material handling platforms |
| RGV Linear Guide Systems | Slim profile integrates with linear rail RGV designs |
| Space-Optimized Warehouses | Fits narrow, elongated battery compartments in compact AGV fleets |
| Retrofit Projects | Replaces multiple smaller batteries with one extended unit |
Customization Options
Runing Power offers full OEM/ODM customization — adjust voltage, capacity, dimensions, communication protocols (CAN/RS485/Analog), and BMS parameters to match your specific AGV/RGV application requirements. 48-hour rapid response for custom configuration inquiries.
