Runing Power 48V 75Ah Slim LiFePO₄ Battery — 75A AGV/RGV Pack
48V 75Ah slim LiFePO₄ battery pack with 3,600Wh energy, 75A continuous discharge and RS485 or CAN communication for AGV/RGV equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 48V 75Ah |
| Chemistry | LiFePO₄ |
| Nominal Voltage | 48V |
| Nominal Capacity | 75Ah |
| Energy | 3,600Wh |
| Maximum Continuous Discharge | 75A |
| Standard Charge / Discharge Current | 20A / 60A |
| Communication | RS485 / CAN; Analog optional |
| Operating Temperature | Charge: 0°C to 45°C; Discharge: -10°C to 60°C |
| Dimensions (L × W × H) | 480 × 163 × 282 mm |
| Weight | Approx. 24 kg |

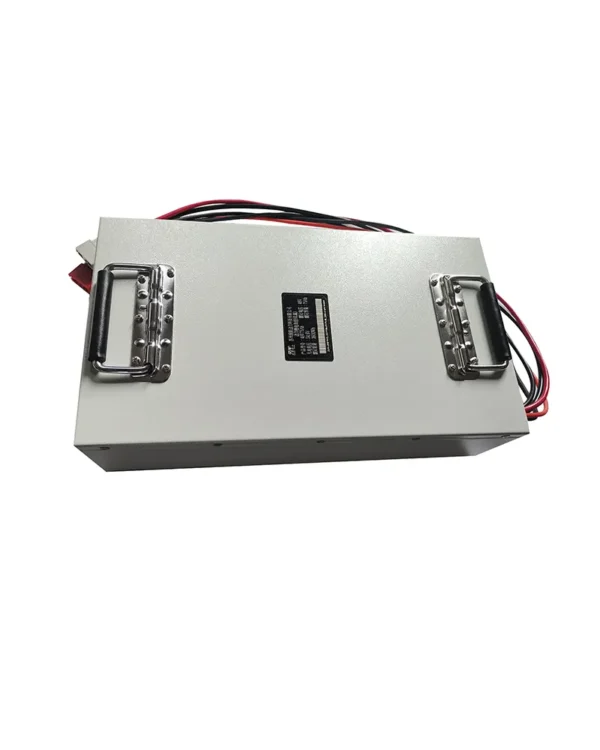

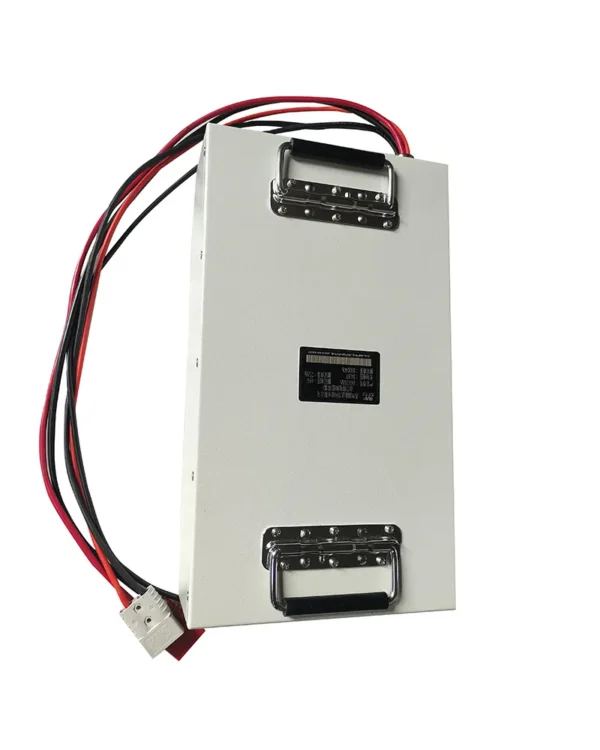

48V 75Ah Slim LiFePO₄ Battery for AGV/RGV Systems
The Runing Power 48V 75Ah LiFePO₄ battery pack is configured for AGV, RGV and industrial mobile equipment with narrow battery compartments. Its 48V nominal voltage and 75Ah capacity provide 3,600Wh of recorded energy.
The pack supports 75A maximum continuous discharge, a 20A standard charge current and RS485 or CAN communication, with analog available as an option. The recorded enclosure measures 480 × 163 × 282 mm and weighs approximately 24 kg, providing a defined slim-width format for OEM integration.
Key Features & Benefits
| Feature | Integration Benefit |
|---|---|
| 163 mm enclosure width | Supports mechanical planning for narrow equipment compartments. |
| 3,600Wh rated energy | 48V and 75Ah configuration for extended mobile-equipment duty cycles. |
| 75A continuous discharge | Supports sustained equipment demand within the recorded current limit. |
| RS485 or CAN communication | Provides recorded controller-integration options, with analog optional. |
Typical Applications
- AGV and RGV platforms with narrow battery bays
- Industrial mobile robots and material-handling equipment
- Factory automation retrofits with defined installation constraints
- Custom OEM robotic power systems
Why Choose Runing Power
Runing Power combines mobile-equipment application engineering, configurable battery pack design and controlled production for overseas OEM projects. Enclosure fit, load profile, charger, controller, communication interface, connector routing and working temperature are reviewed before configuration approval.
Project Service & Delivery Support
- Mechanical integration review: The 480 × 163 × 282 mm envelope can be checked against the customer installation drawing.
- Electrical and communication coordination: BMS settings, wiring, connectors, RS485, CAN or optional analog requirements can be reviewed.
- Production quality control: Cell matching, electrical checks, functional verification and pre-shipment inspection support consistent delivery.
- B2B project support: Technical clarification, quotation response, delivery coordination and after-sales communication are available for OEM customers.
Request an Engineering Review
Send the equipment type, operating voltage, continuous and peak current, expected runtime, available installation space, connector preference, charger data, communication requirements and estimated order quantity.
